DIY Electric Guitar Kit - EXP (Mahogany, Chrome)
Build Easily Your Own Unique Guitar: DIY Electric Guitar Kit - EXP (Mahogany, Chrome) features a customizable body shape. Experience painting, assembling, and adjusting for a playable, unique electric guitar. Geared towards intermediates, this kit balances challenge and ease, aided by solderless electronics. Ideal for hard rock and heavy metal styles.
Premium Quality & Materials: Solid mahogany wood body and neck with rosewood wood fretboard and a bone nut ensure an affordable high-quality guitar. Craft a top-tier instrument cost-effectively.
Support & Community: Satisfied customers, extensive customer build showcase, downloadable user guides + expert support via email. Ideal for guitarists, woodworkers, and hobbyists, seeking a meaningful new project.
*Free & Next Day Delivery in the UK and France | 3-5 Working Days Delivery to Europe | 7 Working Days Delivery to the US | Worldwide Delivery Available
This Do-It-Yourself guitar kit offers a customizable experience for guitar builders seeking a unique design and superior playability. Perfect for creating your own hard-rock or heavy metal instrument, the kit features quality materials and components for a top-notch finish.
Guitar Build Levels and Challenges
The EXP guitar kit is perfect for intermediate builders, offering a balanced challenge that covers every step of the build. Painting the slightly porous mahogany body requires minimal grain filler compared to ash but demands careful attention to avoid drips along its unique contours, while the mahogany neck also benefits from light filling. Assembly is straightforward yet engaging—the straight, glued-in neck calls for an initial string-action check since it can’t be repositioned, our solderless wiring system and pre-drilled bridge holes remove guesswork, and the soft wood makes pre-drilling and screwing effortless. Finally, the Tune-o-matic bridge allows precise intonation and overall action adjustments; although it doesn’t provide individual string fine-tuning like a tremolo, the removable nut lets you customize string spacing, and the absence of a neck angle further simplifies setup.

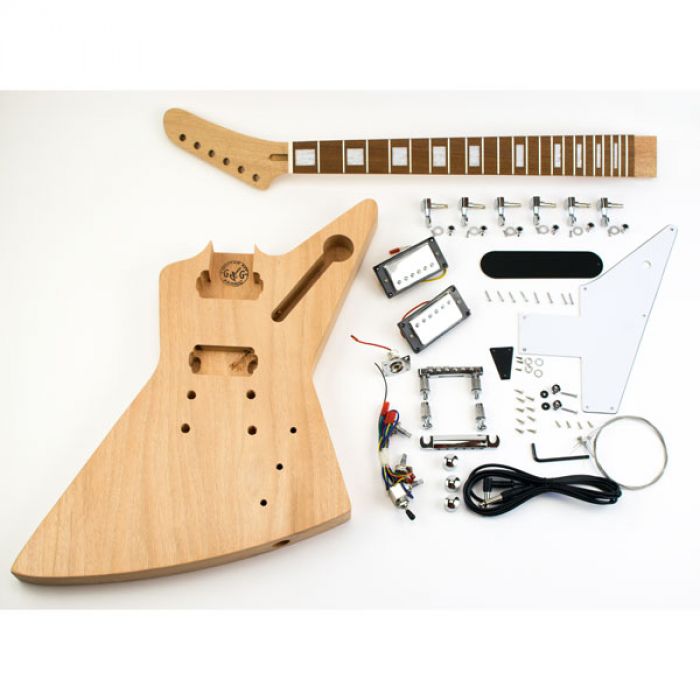

Key Features
- Solid mahogany guitar body, allowing for custom shaping and set-in joint construction.
- Mahogany neck with a rosewood fretboard, featuring 22 frets and a white trapeze Perloid inlay.
- Chrome hardware set with a solderless wiring system for easy assembly.
We've got your back. Our step-by-step guide walks you through the full build process.
Discover how others brought their kits to life in the Customer Showcase.
Specifications
| General | |
| Scale Length | 628 mm (24.75") |
| Hand Orientation | Right Handed |
| Neck / Body Fit | Set-in Joint |
| String Number | 6 |
| Guitar Body | |
| Wood Type | Mahogany |
| # of Wood Block | Made of 2 to 3 blocks of wood |
| Neck Pocket Dimension (LxWxH) | 88x55x35mm |
| Body Height (H) | 45mm (1.77") |
| Cavity/Routing | Pick-up, Bridge, Neck, Wiring routing, cover plates and switch |
| Pilot Predrill | No pre-drilled pilot holes except for the neck pocket |
| Paint | No lacquer, No sealer, No finish |
| Guitar Neck | |
| Scale Length | 628 mm (24.75") |
| Number of Strings | 6 |
| Tuner Pre-Drilled Holes | 10 mm |
| Wood Type | Mahogany |
| Fretboard | Rosewood |
| Inlay | White Trapeze Perloid |
| Nut | BONE |
| Fret Number | 22 |
| Fret Size | Jumbo Fret |
| Fret Material | CuproNickel |
| Neck Radius | 305mm (12") |
| Neck Profile | Modern C |
| Truss Rod | Double action, on the head side |
| Paint | No lacquer, No sealer, No finish |
| Guitar Hardware | |
| Color | Chrome Set |
| Bridge | Tune-o-matic, Chrome |
| Pick-up | 2 Humbucker pickups, Chrome (H-H Configuration) |
| Switch | 3-way toggle switch, chrome with black tip |
| Machine Head | Inline, Chrome |
| Knobs | 2 volume & 1 tone |
| Strap Button | Chrome |
| Covers | Back Cover knobs, Black |
| Wiring | Solderless Wiring |
