DIY Electric Guitar Kit - FB (Mahogany, Chrome)
Build Easily Your Own Unique Guitar: With the DIY Electric Guitar Kit - FB (Mahogany, Chrome), explore creativity through steps: painting, assembling, and adjusting this distinct electric guitar. While intended for skilled builders, dedication makes it accessible to anyone passionate about the project. Solderless electronics simplify customization while maintaining quality. Suited for varied music styles.
Premium Quality & Materials: The kit includes solid mahogany wood for the body and a Canadian maple wood neck, paired with a rosewood fretboard and a bone nut—ensuring a premium feel at a lower cost.
Support & Community: Our customers are satisfied, showcased in the customer build showcase, downloadable user guides. Get support via email with a 24-hour response guarantee and an excellent return policy. Join our community of guitarists and woodworkers, perfect for those seeking a meaningful hobby or gift.
*Free & Next Day Delivery in the UK and France | 3-5 Working Days Delivery to Europe | 7 Working Days Delivery to the US | Worldwide Delivery Available
This DIY electric guitar kit comes with high-quality components including a Canadian Maple neck, Rosewood fretboard, and chrome hardware. It's tailored for enthusiasts eager to build a guitar that offers clear sound with dynamic response.
Guitar Build Levels and Challenges
The FB DIY Guitar Kit is beginner-friendly, offering a smooth and stress-free building experience. The mahogany body is easy to paint, and its even grain takes finishes well, while the maple neck is smooth and ready to install without extra prep. Assembly is straightforward thanks to the bolt-on neck and pre-drilled cavities for effortless wiring. The soft mahogany makes pre-drilling and screwing components into place a breeze, reducing the risk of splitting or misalignment. Setting up the instrument is just as simple, with a tune-o-matic bridge that allows for easy intonation and string height adjustments. Plus, the flat neck angle helps simplify action setup, making this kit a perfect first build for aspiring luthiers.
Key Features
- Body: Solid 1-piece Mahogany with FB style carving
- Neck: Canadian Maple, 22 frets with White Trapeze Perloid Inlay
- Hardware: Tune-o-matic bridge, 2 mini-humbuckers, Chrome finish
We've got your back. Our step-by-step guide walks you through the full build process.

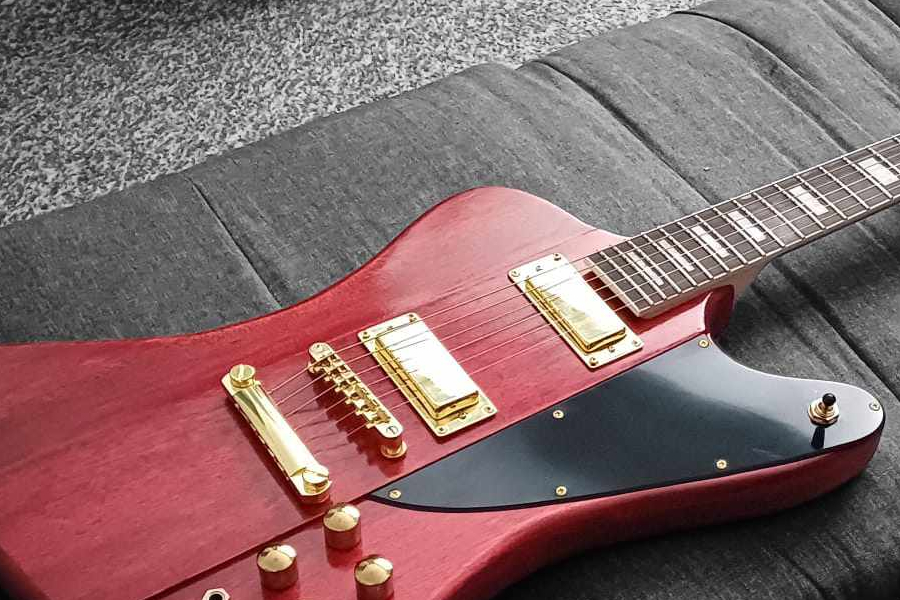

Discover how others brought their kits to life in the Customer Showcase.
Dive deeper into this guitar’s legacy with our Model Review — featuring its history, style, and legendary players.
Specifications
| General | |
| Scale Length | 628mm (24.75") |
| Hand Orientation | Right Handed |
| Neck / Body Fit | Bolt-On Joint |
| String Number | 6 |
| Guitar Body | |
| Wood Type | Mahogany |
| # of Wood Block | Made of 1 piece of wood |
| Neck Pocket Dimension (LxWxH) | 40mmx57mmx18mm (1.6"x2.25"x0.7") |
| Body Height (H) | 36mm (1.42") |
| Cavity/Routing | Pick-up, Bridge, Neck, Wiring routing, cover plates, and switch |
| Pilot Predrill | No pre-drilled pilots holes except for the neck pocket |
| Paint | No lacquer, No sealer, No finish |
| Guitar Neck | |
| Scale Length | 628mm (24.75") |
| Number of Strings | 6 |
| Tuner Pre-Drilled Holes | 10 mm |
| Wood Type | Canadian Maple |
| Fretboard | Rosewood |
| Inlay | White Trapeze Perloid |
| Nut | White Bone Nut (42mm) |
| Fret Number | 22 |
| Fret Size | Jumbo Fret |
| Fret Material | CuproNickel |
| Neck Radius | 305mm (12") |
| Neck Profile | Modern C |
| Truss Rod | Double action, on the head side |
| Paint | No lacquer, No sealer, No finish |
| Guitar Hardware | |
| Color | Chrome Set |
| Bridge | Tune-o-matic, Chrome |
| Pick-up | 2 Mini-humbuckers, Chrome (H-H Configuration) |
| Switch | 3-way toggle switch, Chrome with black tip |
| Machine Head | Inline, Chrome |
| Knobs | 2 black volumes and 2 black tones |
| Neck Joint Plate | Chrome |
| Strap Button | Chrome |
| Covers | Back Cover for knobs and switch, White |
| Wiring | Solderless Wiring |
