TREMOLO BRIDGE INSTALLATION & SET UP

Tremolo Installation

Known for its ability to create dramatic pitch variations, the tremolo bridge adds a new layer of expression to your playing. In this comprehensive guide, we'll focus on its installation on the guitar body including bridge alignment and spring installation.

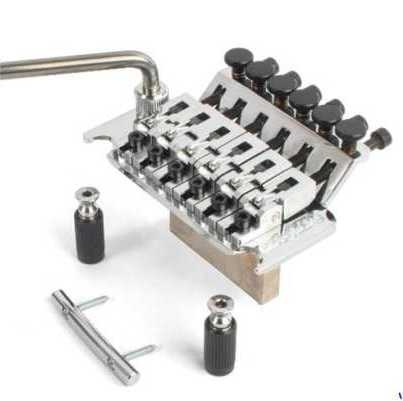

The Floyd Rose is a double-locking tremolo system that locks strings at the nut and bridge, providing extreme tuning stability and wide pitch-bending capability.

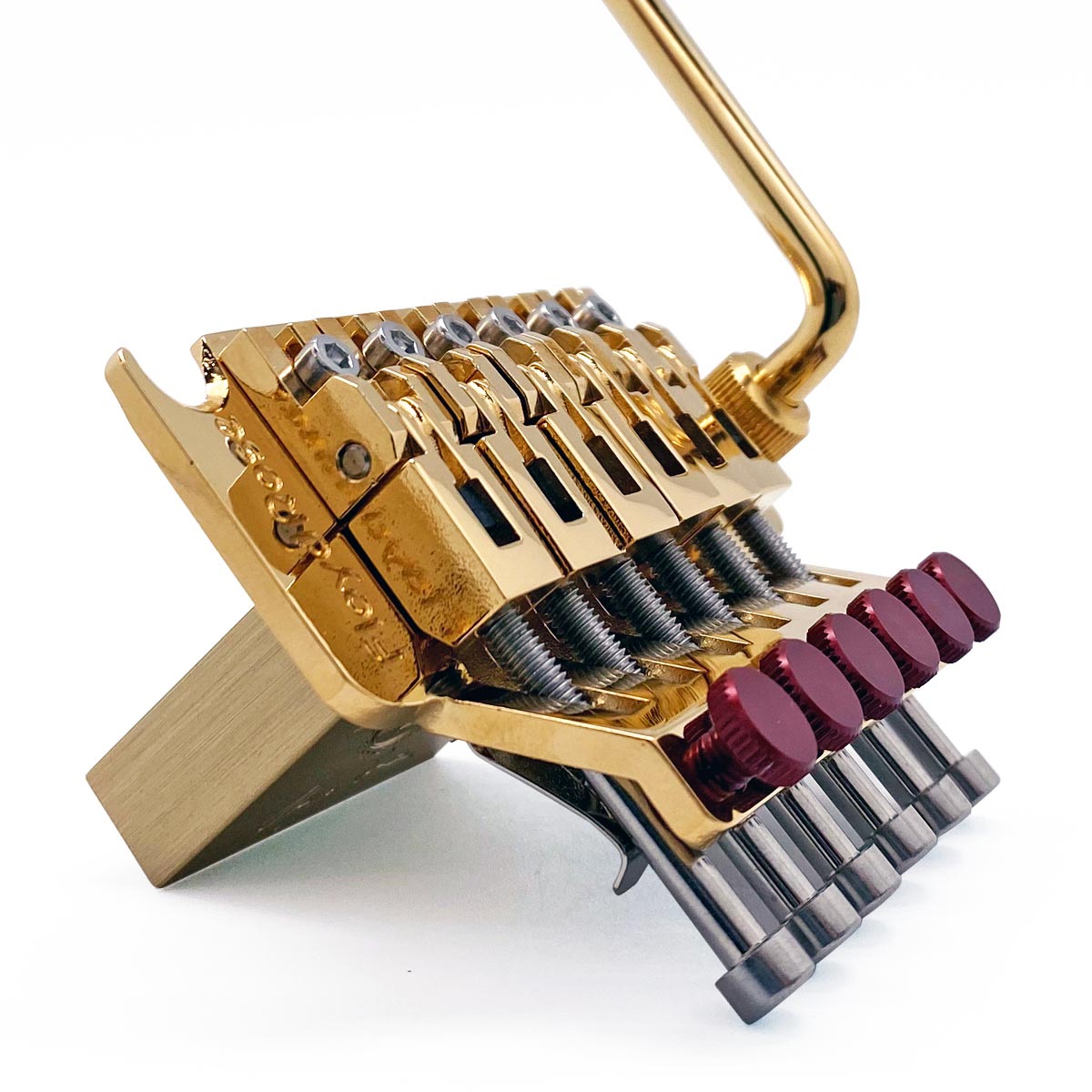

a full Floyd Rose tremolo

Installing the Springs: The stability of a Floyd Rose tremolo depends on precise spring tension. Install the springs in the tremolo cavity, ensuring even distribution to counterbalance string tension. Proper equilibrium is crucial for maintaining tuning stability, especially during dive bombs, pull-ups, and vibrato techniques.

1. Rear of the guitar body (spring fixing)

2. Rear of the guitar body (springs fixed)

3. Floyd Rose Diagram

String Installation: Lock the strings at the bridge saddles, thread them through the locking nut, and tune to pitch. Stretch the strings thoroughly and fine-tune using the micro-adjusters to maintain tuning stability during heavy tremolo use.

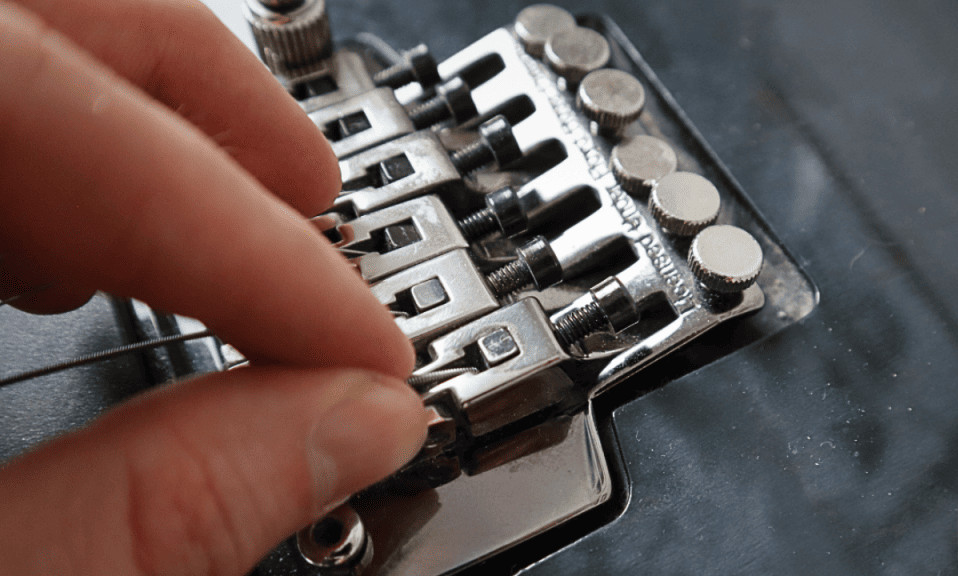

String installation on a Floyd Rose

Set-up Floyd Rose or Tremolo Bridge

Balancing Your Floyd Rose Tremolo: Proper balance between the tremolo springs and string tension is crucial for achieving a stable floating setup. This step ensures that your bridge stays level under full string tension.

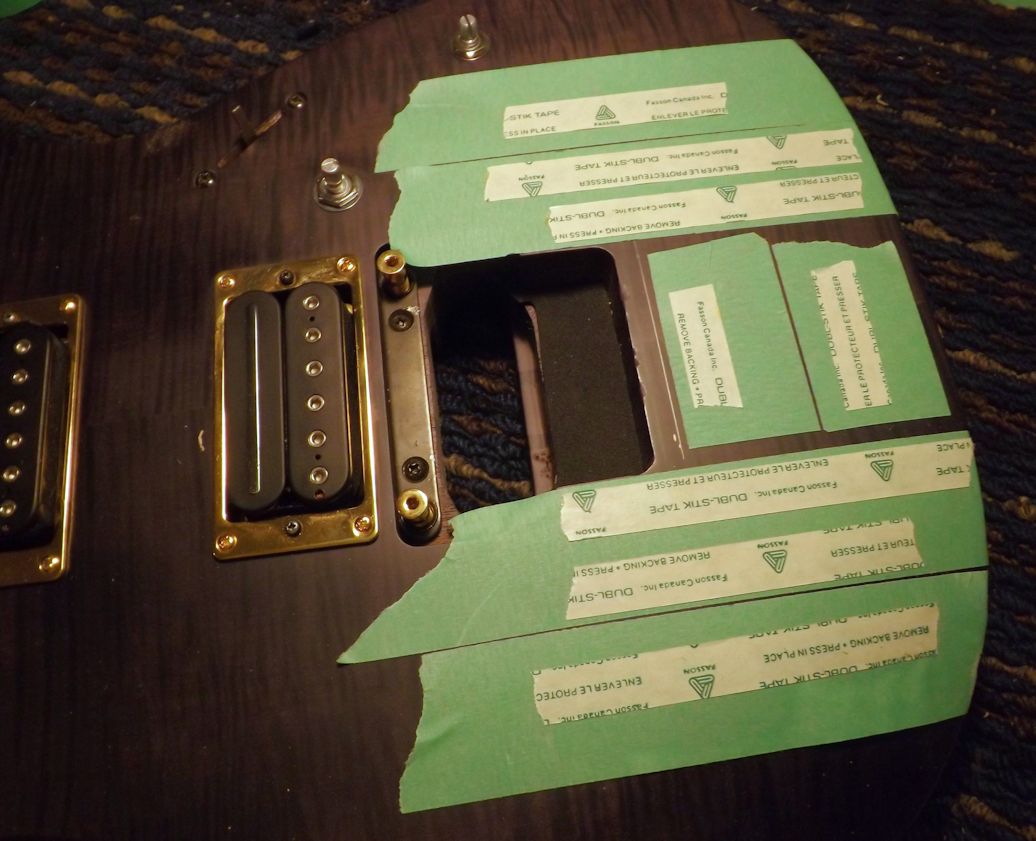

Tape Method – For Initial Balancing
The tape method helps keep the tremolo bridge plate flat and parallel to the body while you tune and adjust the spring claw screws. It's especially useful with Floyd Rose systems to stabilize the bridge during setup.

How to use it:
Place a strip of masking tape or a thin wedge under the rear of the bridge to temporarily support it in a flat position. Tune the guitar and adjust spring tension using the claw screws until the bridge naturally holds that position without support. Then remove the tape.

• Aim for equal tension between the strings and the tremolo springs to maintain tuning stability.
• Use fresh, fully stretched strings to prevent tuning drift.

As you tune up, the bridge may lift—adjust the claw screws in the rear cavity to compensate.

Post-it Method – For Floating Height Adjustment
This method helps define how much your tremolo bridge should float above the guitar body — typically 1.6 mm to 2 mm — allowing for upward pitch bends. It’s especially useful with PRS-style and Strat-style tremolos, but can also help during Floyd Rose setup if you want light upward pull.

How to use it:

• Stack a few Post-it notes or use a shim to make a 1.6–2 mm spacer.
• Place the spacer under the rear of the tremolo bridge between the baseplate and the guitar body.
• Tune the guitar and adjust spring tension until the bridge rests gently on the shim and stays parallel to the body.
• Remove the shim — the bridge should now float at the correct height.

This is an effective way to preset the pull-up clearance while maintaining stability.

Which Method Should You Use?
Both the Tape Method and the Post-it Method are helpful during tremolo bridge setup, but they serve different purposes and may apply differently depending on the tremolo system you're working with.

The Tape Method is a general-purpose stabilizer that works well on all tremolo types — including Strat-style and Floyd Rose systems — and is used primarily during spring balancing and tuning. The Post-it Method is best suited for Strat-style and PRS-style tremolos when you want to define a specific floating height (e.g., 1.6 mm to 2 mm). While it can be used on Floyd Rose bridges, it's less common due to the system's built-in precision and locking design.

Final Floyd Rose Adjustment: To ensure accurate intonation and smooth tremolo action, follow this setup:

• Adjust Intonation: Compare the 12th-fret harmonic with the fretted note using a tuner. Adjust the fine-tuners and move the saddles if needed.

• Lubrication: Clean the knife edges, pivots, and locking nut. Apply a small amount of lubricant (e.g., sewing machine oil or Nut Sauce) to reduce friction and prevent string binding.

Locking System: After tuning, lock the nut securely. Adjust the fine tuners and, if needed, fine-tune the bridge balance by modifying the spring tension in the rear cavity.

Conclusion

Achieving optimal pitch stability and fluid tremolo action with a Floyd Rose system requires meticulous setup and fine-tuning. Ensuring the bridge is properly aligned with the neck is crucial, as it directly impacts pitch modulation and tuning accuracy across all strings. Equally vital is a well-balanced spring configuration within the tremolo cavity, which maintains consistent string tension for smooth bends and vibrato.

When setting up a Floyd Rose tremolo, a step-by-step approach is key. This includes installing and stretching fresh strings, precisely adjusting intonation, lubricating critical contact points, and carefully balancing the bridge to achieve proper floating. Given that Floyd Rose systems utilize a locking mechanism, securing the nut and fine-tuning the tension bar are essential steps to ensure rock-solid tuning stability, even with heavy tremolo use.
